The 9350 is designed for high-bandwidth, mobility applications, and can operate on High Throughput Satellites. The 9350 provides a superior level of IP broadband capability, supporting DVB-S2/ACM and Adaptive TDMA, and features dual DVB-S2 demodulators, an 8-port Gigabit switch and two Ethernet ports. Service providers can implement the most efficient technology dependent on their network architecture, resulting in a more cost efficient use of extremely small antennas for government and military applications including command and vehicle-based terminals.

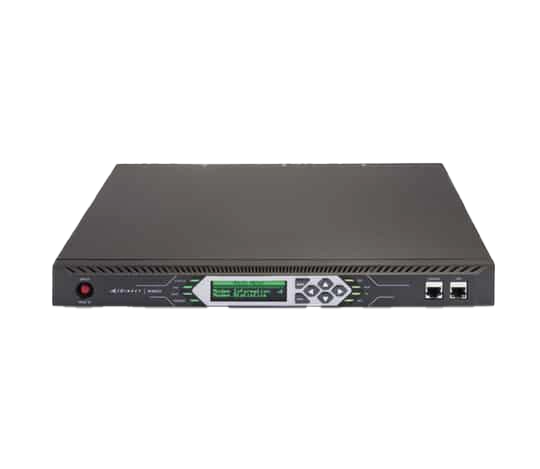

9350 Satellite Modem
-
The 9350 Satellite Modem is housed in a 1RU rackmount chassis and features dual DVB-S2 demodulators for networks utilizing multiprotocol encapsulation (MPE) traffic. The 9350 also has one Ethernet port and an 8-port Gigabit switch to securely support different user groups. The front panel includes an LCD screen, allowing a user to view modem configuration and statistics and it also has a zeroize button for added protection. The 9350 also meets MIL-STD 810G requirements for extreme operational conditions. Coupled with the dynamic feature set of the ST Engineering iDirect platform, the 9350 is highly flexible and can support small antennas for government and military applications including command, naval, and vehicle-based terminals.
The 9350 Satellite Modem is also available in a board-level product variant. The 900 Modem Board also features dual demodulators and an 8-port Gigabit switch and is ideal for integration into both fixed and mobile terminals.
-
Features of the 9350
- DVB-S2 up to 45 Msps
- Adaptive TDMA up to 29 Msps
- Dual demodulators to support two data streams
- Ideal for both fixed and mobility applications
- FIPS 140-2 Level 3 Certified (#3056) TRANSEC module (E0002268)
- Extended frequency ranges for WGS constellations
-
-
